Double Pallet Handler (Single-Double Pallet Handler) in UAE

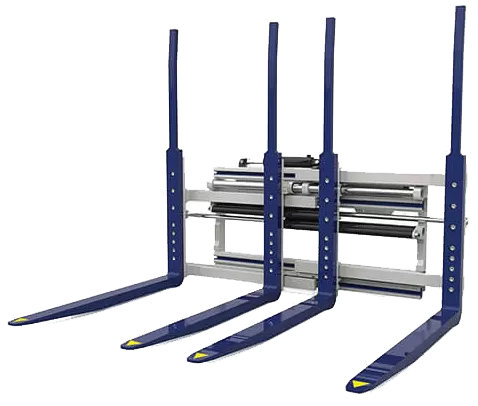

A multiple pallet handler is a forklift attachment that lets one forklift move two or more pallets in a single handling cycle. The simplest version, the single-double pallet handler, carries one pallet or two side by side.
Liftronic Machinery supplies multiple pallet handlers for sale in Dubai, Abu Dhabi, Sharjah and across the UAE, for beverage distribution, breweries, mineral water, FMCG logistics, warehouses, manufacturing, and brick and building-material operations.
Depending on the configuration, handlers can move one, two, three, four, six or other combinations of pallets. The right choice depends on the application and the attachment specification.
In a conventional operation, one forklift cycle moves one pallet. With a suitable multiple pallet handler, the same cycle moves several: fewer trips, less handling time, faster loading and unloading, and better forklift utilisation. Manufacturer information for this attachment category states it can reduce handling time and handling costs during storage and vehicle loading.
The actual improvement depends on pallet configuration, travel distance, vehicle layout, load weight, warehouse design and operator practice, so measure it against your current process.
Configurations: 2/1, 3/2/1, 4/2 and 6/4/2
Configuration
Pallets handled
Typical use
2/1
One or two pallets
Beverage, brewery and distribution pallets; often with side shift
3/2/1
One, two or three pallets
Operations where pallet quantities vary
4/2
Two or four pallets in depth
High-volume loading and unloading
6/4/2
Two, four or six pallets in depth
The highest-volume operations
The numbers describe the pallet arrangement, not a capacity rating. More pallet positions do not mean more lifting capacity.
What limits how many pallets you can lift
Individual pallet weight and total load weight
Pallet dimensions and spacing
Attachment rated capacity and weight
Forklift residual capacity
Load centre
Lift height and mast configuration
Beverage, brewery, water and building materials
Multiple pallet handlers are specifically identified for beverage industries, breweries and mineral-water bottling plants, where bottled water, soft drinks, cases and palletised drinks move continuously from production to storage, loading and distribution. They work best when pallets are standardised, load weights are consistent, loading areas have space, and the attachment is chosen for the total combined load, not one pallet.
They are also used in brick factories, block manufacturing, building-material warehouses and outdoor storage, where load dimensions, pallet condition, ground conditions and total weight must be assessed first.
Sideshift and one-side vehicle loading
Some configurations include sideshift, which moves the load sideways relative to the carriage for pallet alignment, truck loading and correcting placement. Others are designed for loading and unloading from one side of a vehicle, useful where access around the truck is limited. Designs use shaft-guided, profile-guided or combined guidance concepts, chosen for the application and operating environment.
How to choose a multiple pallet handler
How many pallets do you normally move: 1, 2, 3, 4 or 6?
What does each pallet weigh? The attachment must handle the combined load.
What are the pallet length, width, height, spacing and overhang?
What is on the pallets: bottled water, soft drinks, bricks, blocks, FMCG or general goods?
Which forklift will run it: make, model, rated capacity, load centre, mast, maximum height and carriage class?
What movement is needed: sideshift, deep pallet handling, one-side vehicle loading or standard movement?
Does a multiple pallet handler reduce forklift capacity?
Typical multiple pallet handlers are rated from 3,000 to 7,000 kg.
Yes, it can significantly affect residual capacity, because a multiple pallet handler can be much heavier than standard forks. It affects lifting capacity, load centre, front axle load, mast capacity and maximum lift height. Before operating, check forklift capacity, attachment weight, load centre, total pallet weight and lift height together against the forklift's load chart.
3-ton forklifts can suit lighter beverage loads and smaller palletised goods; 5-ton forklifts give room for beverage, bottled water, industrial and building-material work; 7 and 10-ton forklifts suit heavy palletised products and high-volume logistics. A 10-ton forklift does not mean 10 tonnes can be lifted once the attachment is fitted.
When a multiple pallet handler is not suitable
Pallet weights or dimensions vary significantly
Loads cannot be positioned safely together
The combined load exceeds forklift capacity
Aisles are too narrow or the vehicle loading arrangement does not suit
Pallets are damaged or unstable
The load centre becomes excessive or the mast cannot reach the required height
The attachment cannot be integrated hydraulically or mechanically
In these cases standard forks, fork positioners or side shifters may be more appropriate.
Buying a multiple pallet handler in the UAE
Buy a handler for operations that move multiple pallets every day. New, used and refurbished options may be available.
Liftronic Machinery keeps in stock and sources attachments from brands including Cascade, Bolzoni, ATIB, KAUP, Griptech and CAM, and recommends the configuration that suits your application rather than a brand or nominal capacity.
