Narrow Aisle Articulated Forklift Rental Dubai,Abu Dhabi & UAE Warehouse.
Articulated forklift / very narrow aisle (VNA) forklift
1.5 t, 2.0 t and 2.5 t
6–15 m across the fleet (confirm configuration)
From 1.6 m, depending on model and pallet size
Electric, with AC drive on selected models; other types on request

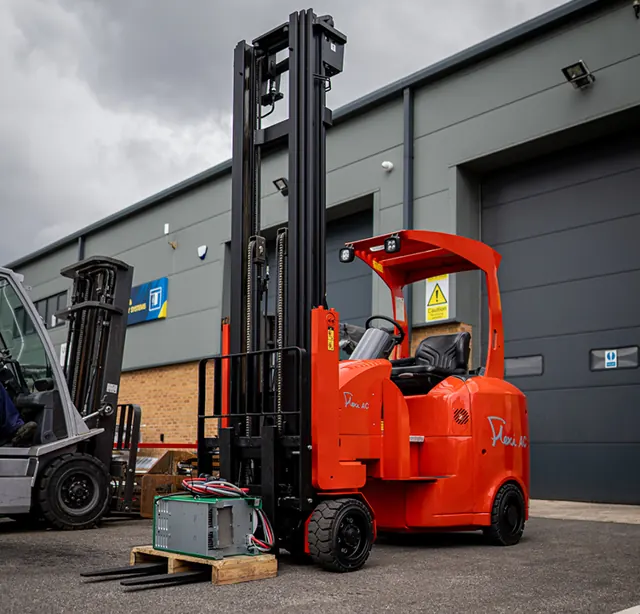

Aisle Master, Bendi and Flexi, subject to availability
Monthly, yearly and long-term
All seven emirates, from our base in Jebel Ali, Dubai
Articulated Forklift Truck Rental in Dubai & UAE
Rent an articulated forklift from Liftronic Machinery & Equipment Rental L.L.C. and store more pallets in the same warehouse footprint. Our articulated forklift trucks are rated from 1.5 to 2.5 tonnes, lift from 6 to 15 metres and work in aisles from 1.6 metres on selected models. We deliver across Dubai, Abu Dhabi, Sharjah, Umm Al Quwain and the rest of the UAE on monthly, yearly and long-term rental.
Whether you handle pallets in narrow aisles, reach upper storage levels or move goods between loading bays and racking, we select the machine around your load, layout and operating hours.

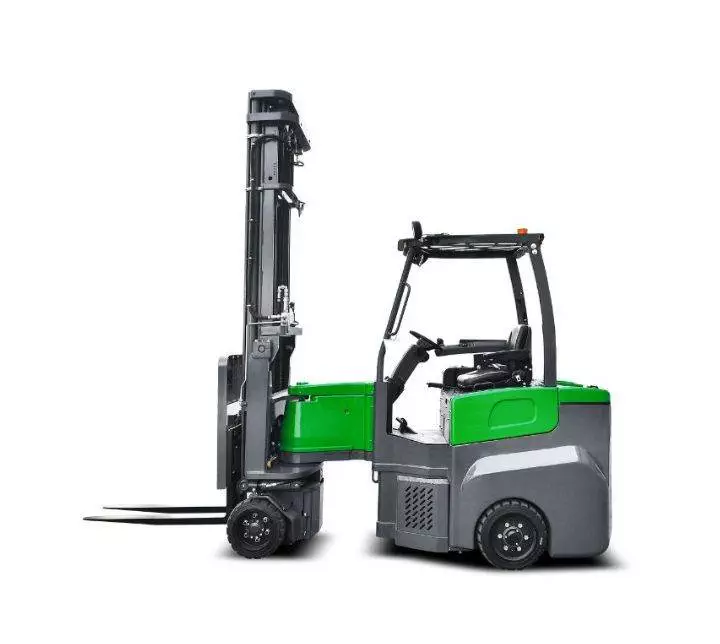

What Is an Articulated Forklift?
An articulated forklift, also called an articulated forklift truck or articulated fork truck, is a forklift with a pivoting front section that turns the mast and forks through 90 degrees towards the racking. This lets it stack pallets in very narrow aisles while still unloading delivery vehicles like a counterbalance forklift.
It combines three capabilities: the handling flexibility of a counterbalance forklift, the high-level stacking of a reach truck and the narrow-aisle access of very narrow aisle equipment. Because it works in aisles far narrower than a standard forklift needs, it is classed as a type of VNA forklift. Suitability still depends on the job; these truck types are not interchangeable in every application.
For warehouses that manage both pallet transport and racking, one truck doing both jobs can simplify everyday handling.
Articulated Forklift vs Reach Truck vs VNA Turret Truck
| Consideration | Articulated forklift | Reach truck | Guided VNA turret truck |
|---|---|---|---|
| Typical working aisle* | From approx. 1.6–2.1 m | Typically around 2.7–3.2 m | Typically around 1.5–1.8 m |
| Truck unloading | Yes, where site conditions allow | Limited | No; needs a separate truck |
| Indoor / outdoor | Indoor, plus suitable outdoor and semi-rough surfaces | Indoor, level floors | Indoor only, very flat floors |
| Aisle guidance | Not required | Not required | Usually rail or wire guidance |
| Best suited to | Mixed truck-to-rack operations in narrow aisles | Standard-aisle racking | High-density, high-bay storage |
*Indicative ranges only. The required aisle depends on the model, pallet size, load orientation and rack layout.
Key Features of Our Articulated Forklift Trucks
- Save up to 50% warehouse space with a suitable narrow-aisle layout; actual savings depend on your existing layout
- Rated capacities of 1.5, 2.0 and 2.5 tonnes
- Lift heights from 6 to 15 metres across the fleet
- Working aisles from 1.6 metres on selected models
- Articulated steering turns the mast through 90° for direct pallet access; the operator reverses out while straightening
- Standard AC electric drive on selected models, with less brush maintenance than DC motors
- Indoor and outdoor operation on semi-rough surfaces, within manufacturer limits
- One truck from delivery vehicle to rack, with no double handling
- Optional 360° forklift camera system and warning lights
- Planned maintenance and breakdown support under the agreed rental terms

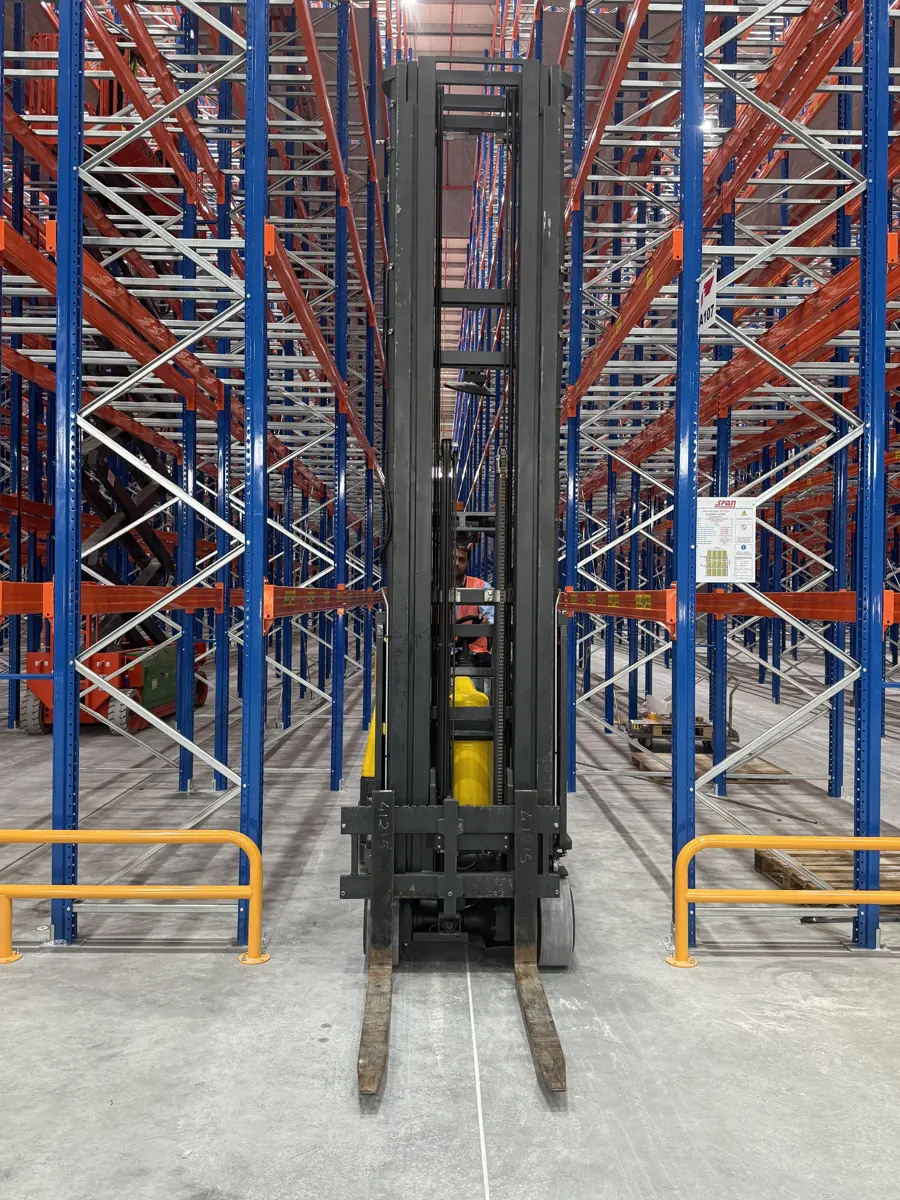

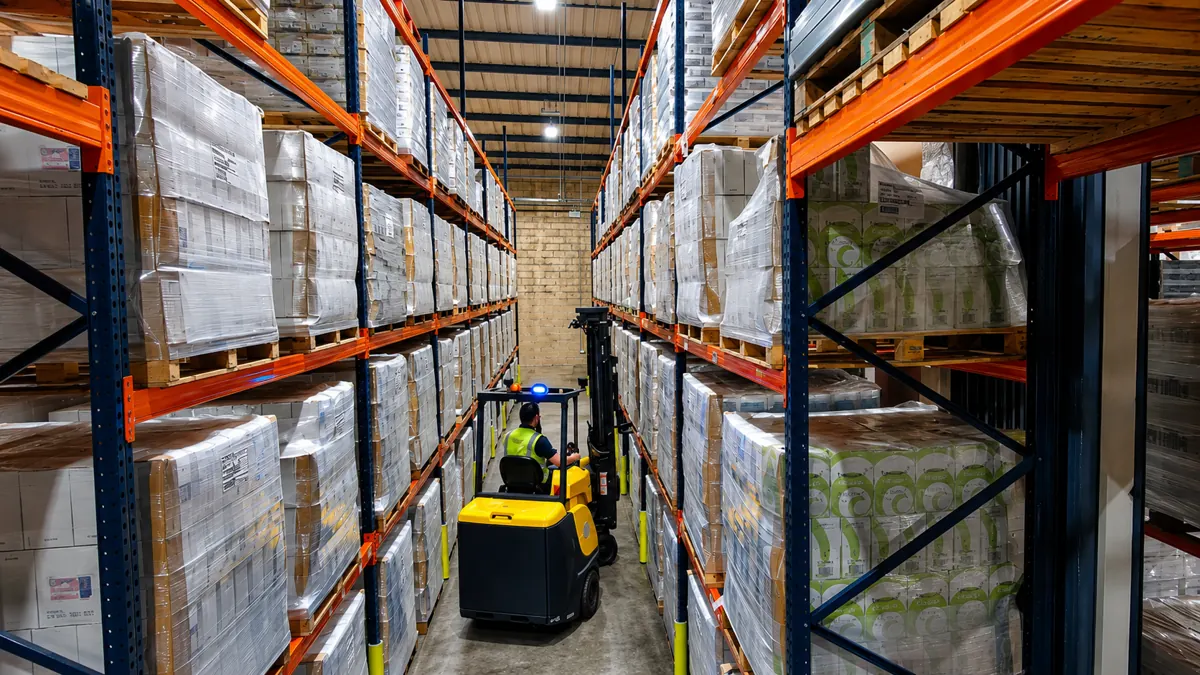

A Very Narrow Aisle Forklift for Aisles from 1.6 Metres
Selected articulated forklifts work in aisles from approximately 1.6 metres, subject to the model, pallet dimensions and operating clearance. That places them among the very narrow aisle forklift trucks used in warehouse VNA layouts, where a conventional counterbalance forklift needs far more turning space.
Planned around the right narrow aisle forklifts, narrower aisles free up floor area for more pallet racking.
Before recommending a rental machine, Liftronic checks the clear aisle width alongside pallet size, load weight and rack layout. Rack protectors, projecting pallets and obstructions are also taken into account.
Articulated Forklift Rental Specifications
The figures below are an initial guide to Liftronic’s articulated forklift rental options.
| Specification | 1.5-tonne option | 2.0-tonne option | 2.5-tonne option |
|---|---|---|---|
| Rated load capacity | 1,500 kg | 2,000 kg | 2,500 kg |
| Indicative working aisle width | From 1.6 m | From 1.9 m | From 2.1 m |
| Lift-height selection | Within the 6–15 m fleet range | Within the 6–15 m fleet range | Within the 6–15 m fleet range |
| Capacity at maximum height | Confirm against load chart | Confirm against load chart | Confirm against load chart |
| Closed mast height | Depends on mast configuration | Depends on mast configuration | Depends on mast configuration |
| Rental availability | Confirm for required dates | Confirm for required dates | Confirm for required dates |
The stated capacity, aisle width and maximum lift height are not guaranteed to apply together. Final selection depends on the individual forklift, pallet dimensions, load centre and warehouse conditions.
Need a specific brand? Include Aisle Master, Bendi or Flexi in your enquiry and we will confirm availability and suitability. Prefer to buy? See our used Aisle Master articulated forklift, Aisle-Master 20WHE, Aisle-Master 44SHE and Bendi articulated forklift.

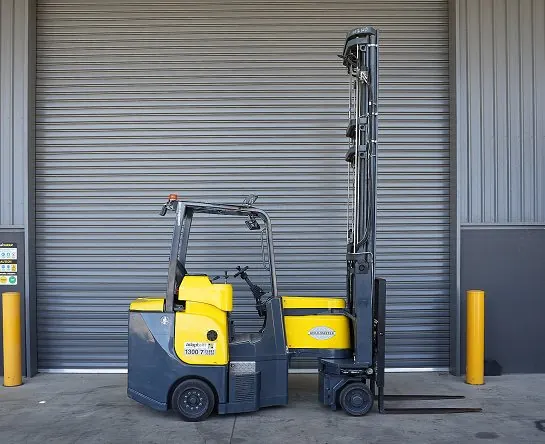

From Delivery Truck to Storage Rack with One Narrow Aisle Truck
An articulated forklift supports a continuous handling route: unload the delivery vehicle, travel into the warehouse and place the pallet in the racking, then reverse the route for dispatch.
Where the machine and site conditions permit, one narrow aisle truck performs both tasks. This reduces pallet transfers between separate machines and keeps receiving and dispatch moving.
For routes between indoor and outdoor areas, we check the proposed machine against surfaces, gradients, access points and loading arrangements.

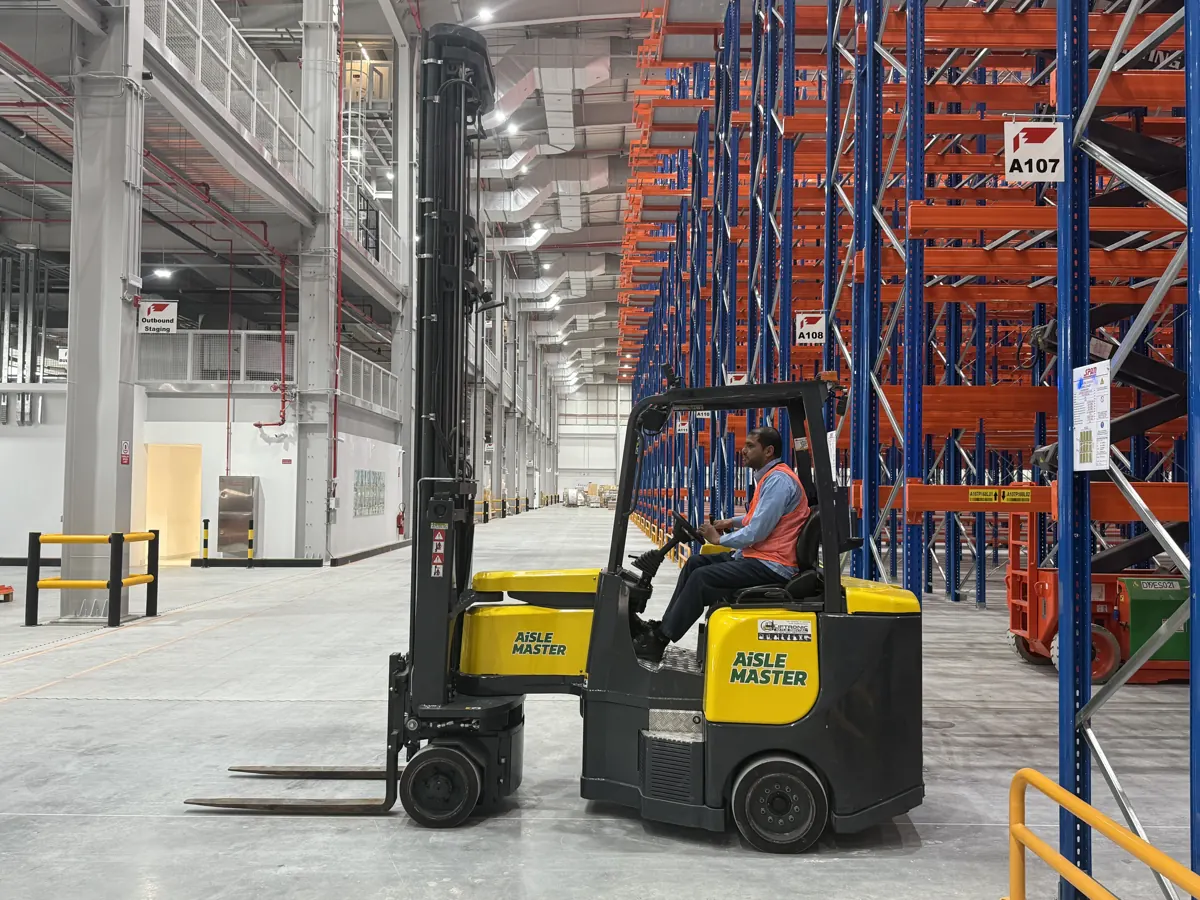

Reach Up to 15 Metres and Make Better Use of Your Racking
Liftronic’s 6–15 metre lift-height range covers a wide range of warehouse storage requirements.
Choosing the right truck involves more than reaching the top beam. It must also have enough capacity for your pallet at that height, with clearance for placement and retrieval.
When requesting a quotation, give us the weight of your heaviest pallet and your highest storage level. Doorway height, overhead services and closed mast height also matter where the forklift moves between warehouse sections.
Standard vs Double-Deep Articulated Forklift
| Consideration | Standard articulated forklift | Double-deep articulated forklift |
|---|---|---|
| Fork configuration | Standard fixed-length forks | Compatible hydraulic telescopic forks |
| Typical racking | Single-deep pallet positions | Two pallet positions in depth |
| Rear-row access | Requires an additional reach arrangement | Reaches the second position when the front is clear |
| Storage priority | Direct access to individual pallets | Greater density with planned stock rotation |
| Capacity checks | Load weight, load centre and lift height | The same, plus fork extension and attachment weight |
| Best suited to | Varied stock needing frequent individual access | Grouped products with a compatible retrieval sequence |
| Space comparison (illustrative) | Baseline: single-deep storage | About 29% more pallet positions in the same area, or 23% less area for the same pallet count* |
*Calculated example, not a guaranteed saving: both layouts use 2.0 m aisles, 1.2 m pallet depth and the same storage levels, comparing repeating rack-and-aisle modules and excluding rack clearances, cross-aisles, staging areas and building constraints. Actual results depend on the approved warehouse layout.
Double-deep handling uses double deep or telescopic reach forks, which we also supply as an attachment.
Visibility and Safety Equipment
Good visibility and clear warnings support safer forklift operation, especially near aisle exits, loading areas and pedestrian routes. Depending on the machine and agreed configuration, safety equipment can include:
- 360° camera system: additional views around the forklift to help monitor blind spots
- Horn: an audible warning at crossings and other restricted-view areas
- Headlights: light the travel route in darker operating areas
- Red warning lights: a visible warning zone around the truck, depending on installation
- Brake lights: signal braking to people and vehicles behind the forklift
Confirm the required safety package when booking. Cameras and warning lights support operator awareness; safe operation still requires trained operators, controlled travel speeds, pedestrian separation and daily checks.
Some articulated forklifts weigh approximately 7 tonnes including the battery, depending on the model. This is the truck’s operating weight, not its lifting capacity, so floor, ramp and dock suitability must be checked against the actual machine and load.
Maintenance and Breakdown Support
A forklift fault can interrupt receiving, replenishment and dispatch. Liftronic’s trained technicians attend breakdowns, diagnose faults and carry out repairs, typically responding within 5–6 hours, subject to location and agreed coverage.
Rental support includes pre-delivery checks and planned maintenance under the agreed terms. When reporting a fault, share the machine ID, site location, error message and a short description of the problem. Response arrangements and any replacement machine are confirmed in the rental agreement. Learn more about our forklift repair and maintenance service.
Monthly, Yearly and Long-Term Articulated Forklift Rental
Choose a rental period that suits your warehouse workload, seasonal demand or ongoing operations.
Your quotation identifies the proposed forklift, rental duration and commercial terms. Delivery and collection, included operating hours, maintenance responsibilities, charging equipment and any extras are agreed before delivery.
Rental pricing depends on capacity, mast height, rental period, operating hours, location and configuration.
Articulated Forklift Rental Locations Across the UAE
From our base in Jebel Ali Industrial Area, Liftronic provides forklift rental in Dubai and supports warehouse and industrial sites across the UAE:
| Emirate | Areas we regularly serve |
|---|---|
| Dubai | Jebel Ali and JAFZA, Dubai South, Dubai Investment Park, Al Quoz and Ras Al Khor |
| Abu Dhabi | Mussafah, ICAD and KEZAD |
| Sharjah | Industrial Areas, SAIF Zone and Hamriyah Free Zone |
| Umm Al Quwain | Industrial and warehouse locations across the emirate |
| Other UAE locations | Ajman, Ras Al Khaimah, Fujairah, Fujairah Port & Free Zone, and Al Ain |
Give us your exact site location and access requirements so we can confirm delivery arrangements.
Why Choose Liftronic for Articulated Forklift Rental
- Machine suitability checked against your aisle, rack height and pallet before we quote
- Flexible monthly, yearly and long-term rental terms
- Breakdown response typically within 5–6 hours, subject to location and agreed coverage
- Pre-delivery checks and planned maintenance on every rental
- A full forklift rental fleet, plus used forklifts for sale and attachments
Read more about Liftronic.
How to Rent an Articulated Forklift in 5 Steps
- Share your requirements. Send pallet weight and dimensions, lift height, clear aisle width, operating hours and site location.
- Confirm machine suitability. We review the required capacity, mast configuration, access clearance and operating environment.
- Receive your quotation. Review the proposed equipment, rental period, transport and support terms.
- Confirm the booking. Complete the agreed order requirements and prepare the site.
- Arrange delivery and handover. Confirm the delivery schedule, site access and charging arrangements where applicable.

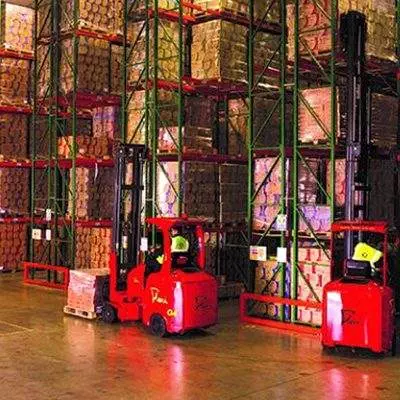

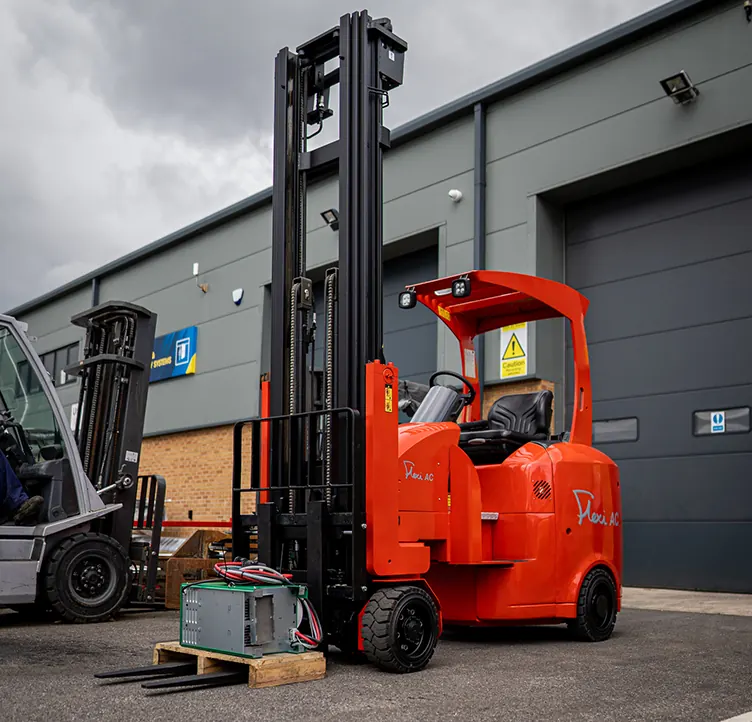

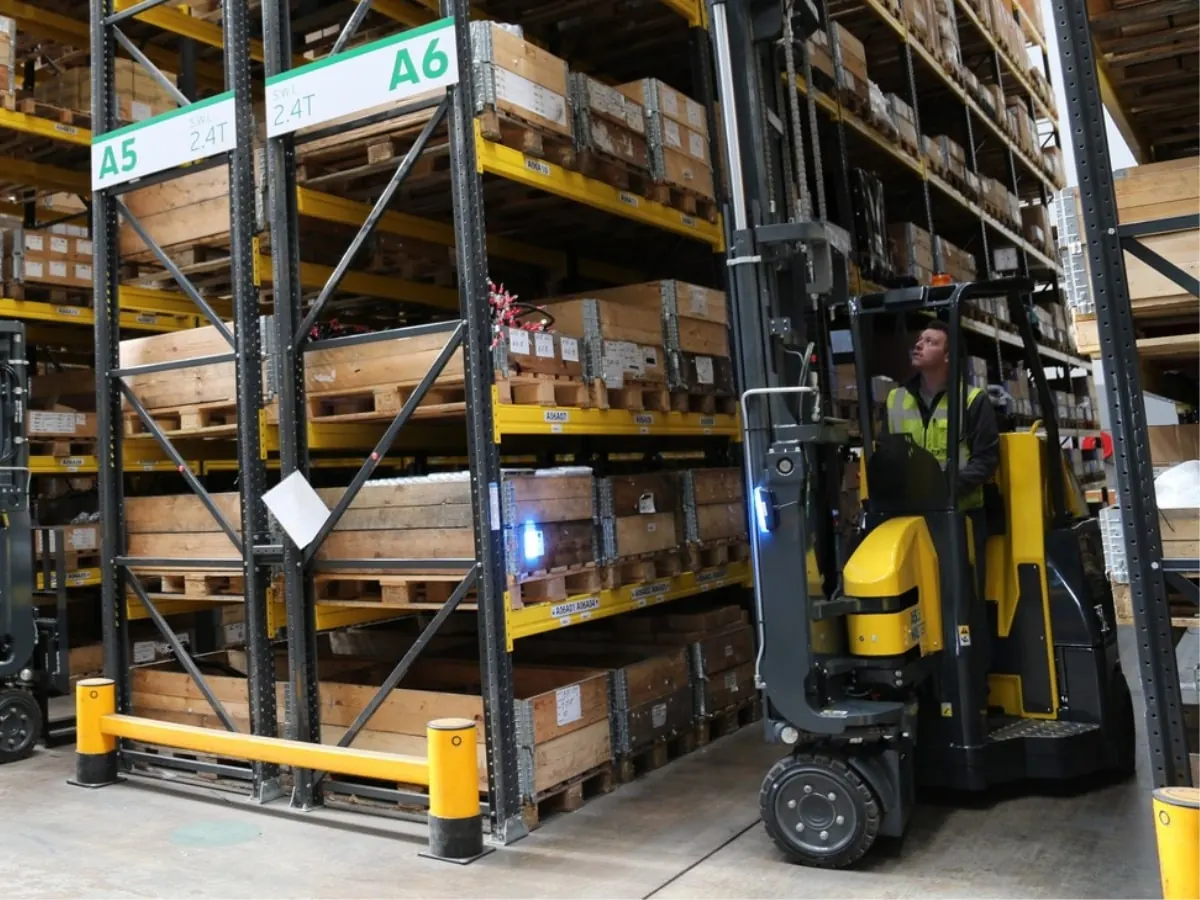

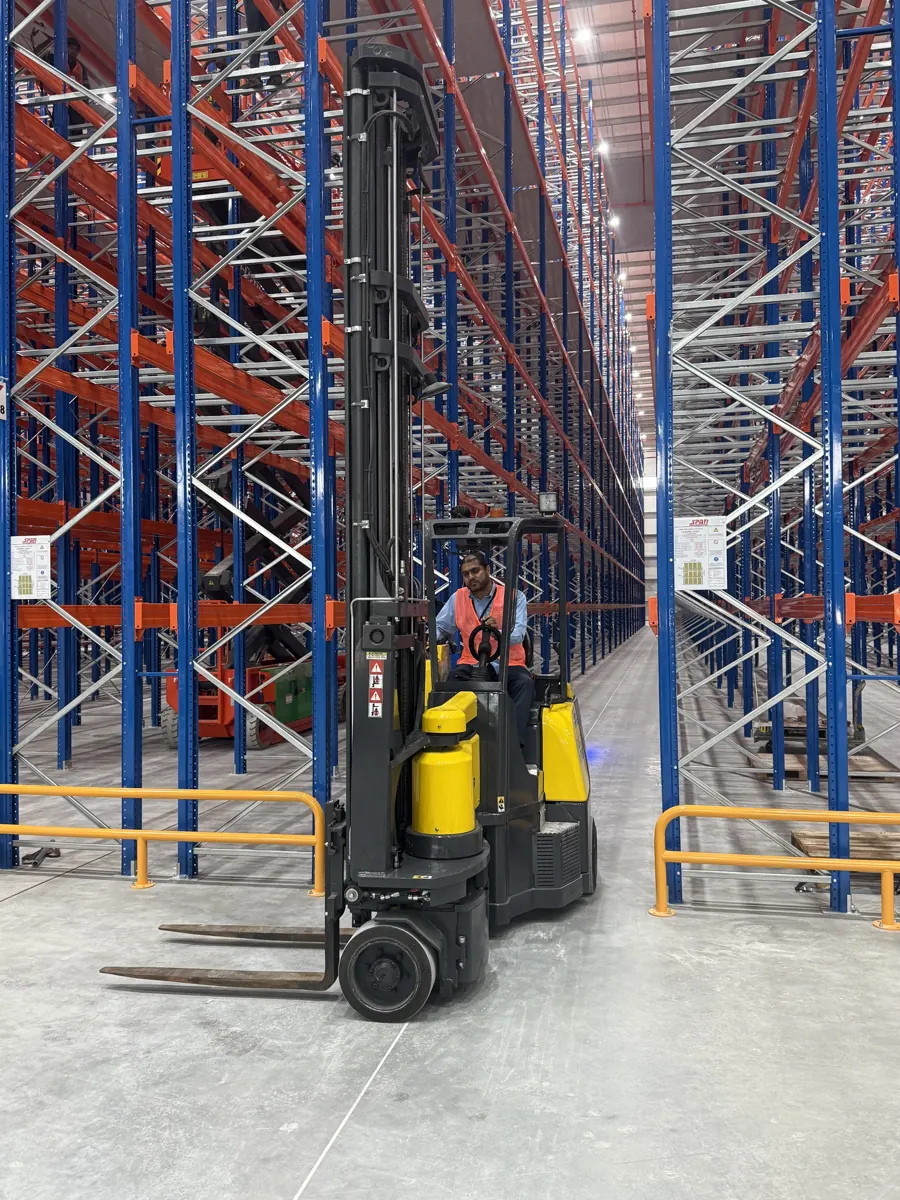

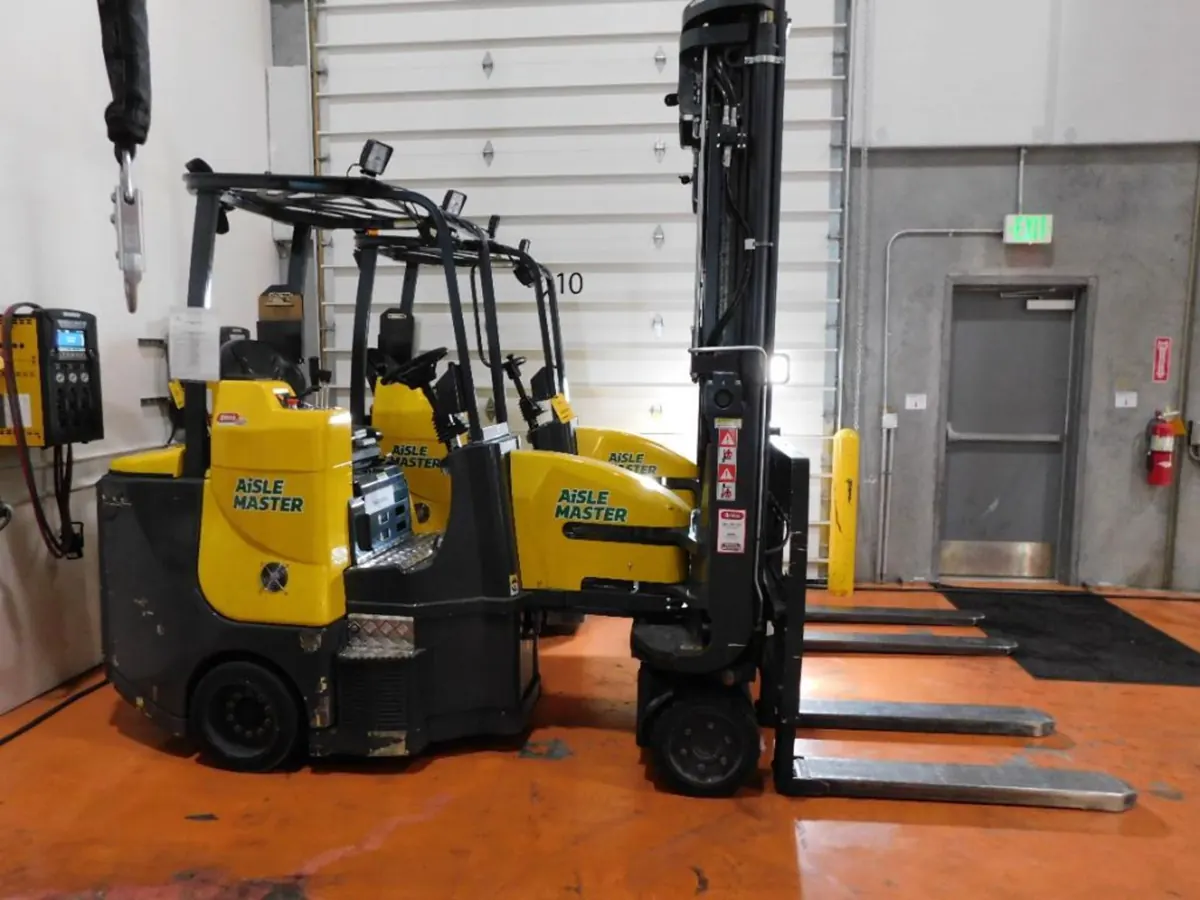

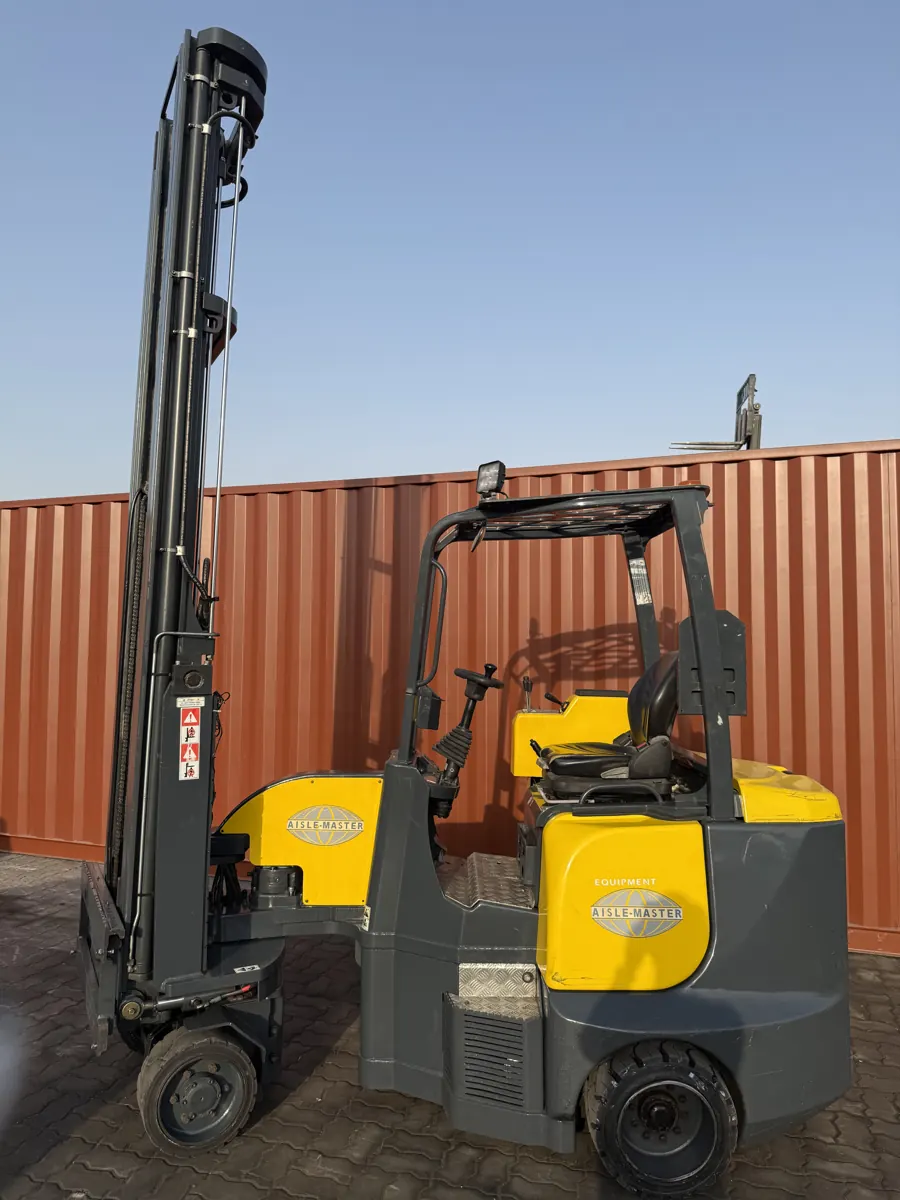

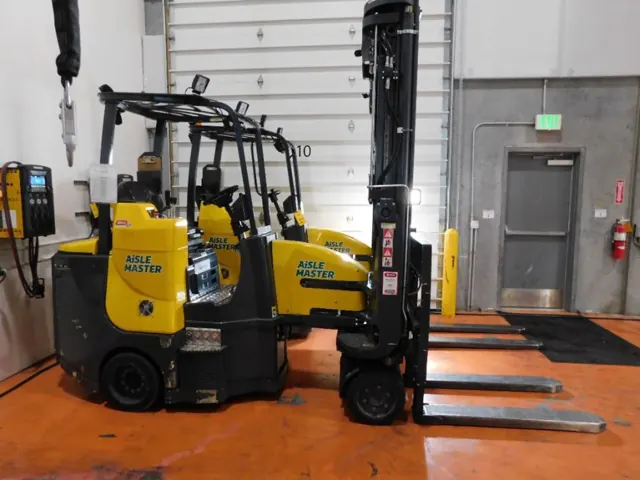

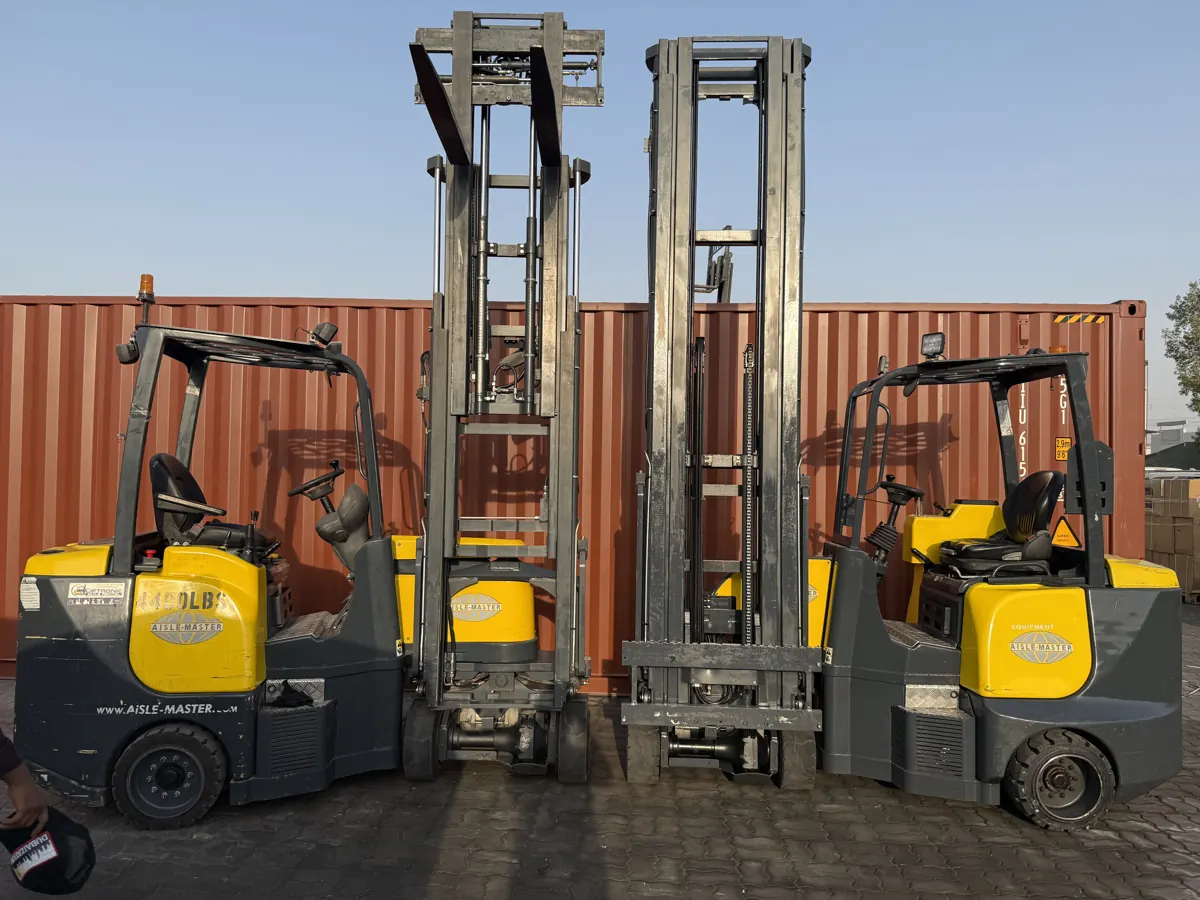

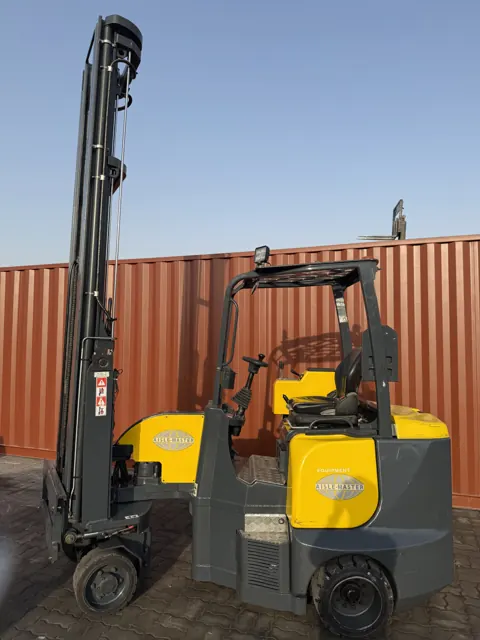

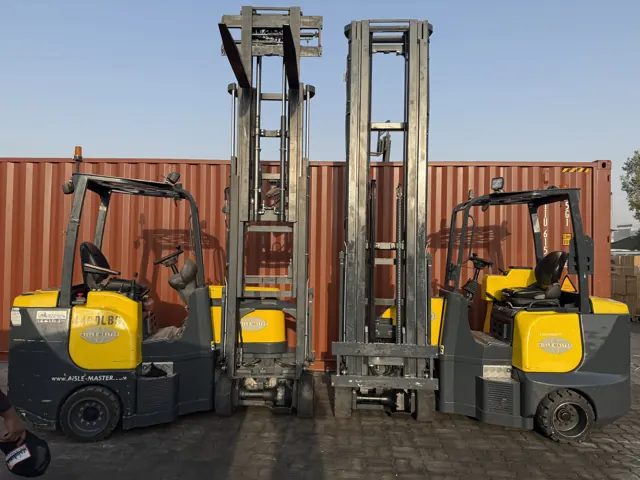

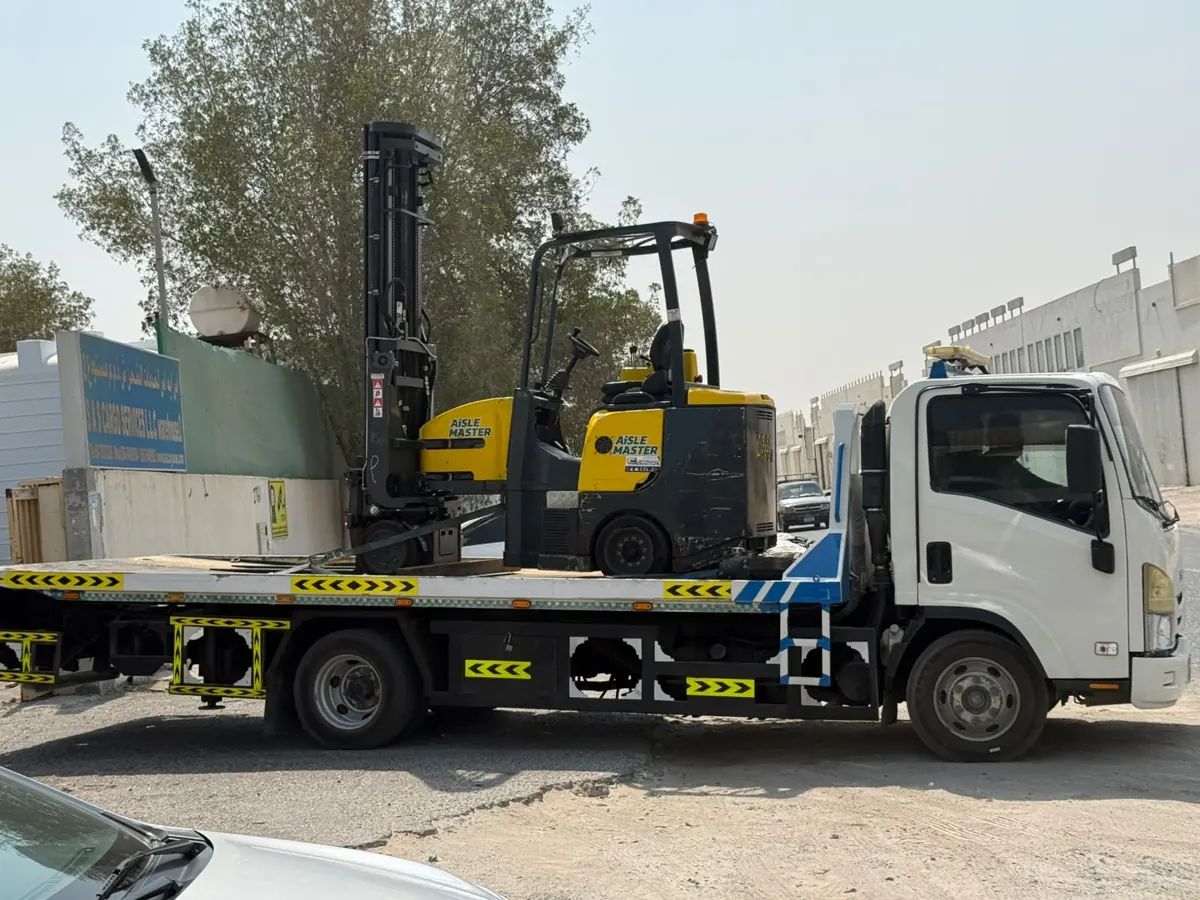

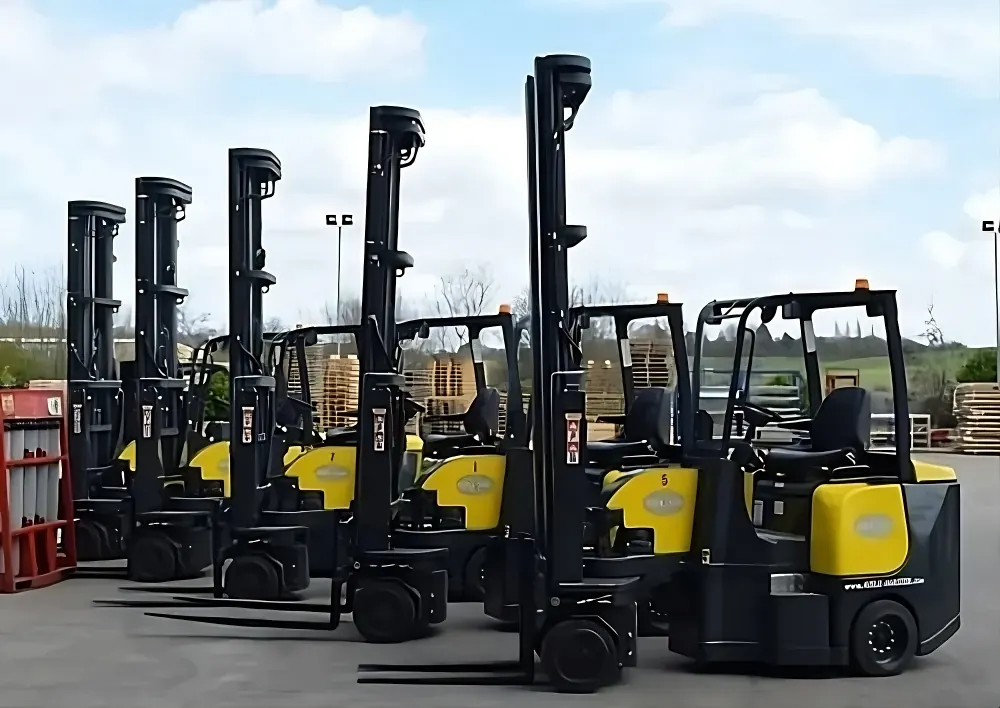

Articulated Forklift Photo Gallery
Articulated Forklift Rental Customer Reviews
Related Equipment for Narrow Aisle Warehouses
Reach Truck Rental
For standard-aisle racking up to 12 m
Combilift Multidirectional Forklift
For long loads in narrow aisles
Order Picker Rental
For case picking at height
Cold Storage Forklifts
For chilled and frozen warehouses
Electric Forklift Rental
For general indoor pallet handling
Used Articulated Forklifts
Aisle Master and Bendi units for sale
Articulated Forklift Rental FAQs
What is an articulated forklift used for?
An articulated forklift unloads delivery vehicles and stacks pallets in very narrow aisles with the same truck. Its pivoting front section turns the forks 90 degrees towards the racking, so it can work in aisles from about 1.6 metres while still handling loads in the yard.
Is an articulated forklift the same as a VNA fork lift?
An articulated forklift is one type of VNA fork lift. A guided turret truck is another type of VNA forklift. Articulated models need no guidance rails or wires and can work outdoors, while turret trucks are indoor-only and usually need very flat floors. Liftronic recommends the type that suits your layout.
What is the difference between an articulated forklift and a reach truck?
A reach truck needs a wider aisle, typically around 2.7–3.2 metres, and works indoors on level floors. An articulated forklift works in aisles from about 1.6 metres and can also unload trucks outside. See our reach truck rental page to compare.
Where does Liftronic provide articulated forklift rental in the UAE?
Liftronic serves Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain, including warehouses in JAFZA, Dubai South, DIP, KEZAD, Mussafah, SAIF Zone and Hamriyah Free Zone. Availability and delivery are confirmed when quoting.
What aisle width does an articulated forklift need?
Selected configurations operate in aisles from approximately 1.6 metres. The required clearance depends on the forklift model, pallet dimensions, load orientation and racking layout. Liftronic checks these details before recommending a machine.
What capacities and lift heights does Liftronic offer?
Our articulated forklift rental range covers rated capacities of 1.5, 2.0 and 2.5 tonnes, with lift heights from 6 to 15 metres across the fleet. Available combinations depend on the machine and mast configuration.
Can a 2.5-tonne articulated forklift lift 2.5 tonnes to 15 metres?
Not necessarily. Rated capacity does not apply at every height. Permissible capacity depends on lift height, load centre and machine configuration, so Liftronic checks the individual machine’s load chart against your requirements.
How can an articulated forklift increase storage space in a UAE warehouse?
It works in narrower aisles than most counterbalance forklifts, leaving more floor space for pallet racking, with savings of up to 50% in suitable layouts. The actual gain depends on your current layout, access routes and storage heights.
Can an articulated forklift work with our existing warehouse racking?
It may, subject to aisle clearance, rack height, pallet dimensions, load weight, doorway clearance and closed mast height. Share your layout, rack measurements and pallet details so we can assess a suitable rental option.
Can one articulated forklift unload trucks and stack pallets inside the warehouse?
Yes, where the loading arrangement, surfaces and travel route are compatible. This reduces pallet transfers between machines. Liftronic checks your indoor and outdoor operating requirements before proposing a machine.
Does Liftronic offer monthly and long-term articulated forklift rental?
Yes. Liftronic offers monthly, yearly and long-term rental for UAE warehouse and logistics operations. The quotation specifies the equipment, duration, included operating hours, maintenance and transport charges.
How much does articulated forklift rental cost in the UAE?
Cost depends on capacity, lift height, rental duration, operating hours, delivery location, and battery and charging requirements. Send your warehouse details and site location for a quotation based on a suitable machine.
Is maintenance and breakdown support included?
Yes. Liftronic provides planned maintenance and breakdown support under the agreed rental terms, with technicians typically responding within 5–6 hours subject to location and coverage. Your quotation confirms the maintenance scope.
Is a 360° camera included with the rental?
Camera availability depends on the selected machine and rental package. Tell us which visibility and warning features your site requires when requesting a quotation.
What information should I provide to request a quotation?
Share your site location, pallet weight and dimensions, highest stacking level, clear aisle width, rental duration, daily operating hours, doorway heights and whether the forklift will work indoors, outdoors or in cold storage.
